FlexRay Signal am FlexRay

kfz-datec

Signale

FlexRay

home

8.0.1

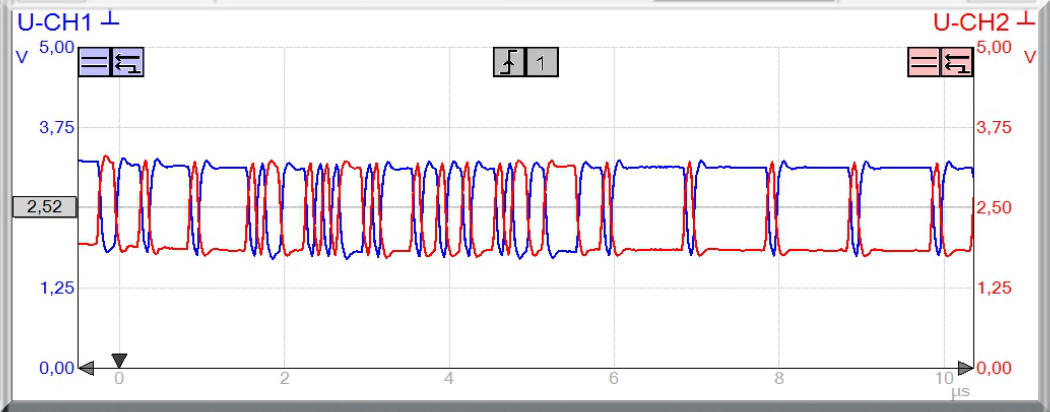

Bus-Plus (BP) Singalbit = 1 Spannung ca. 3,5 V

Bus-Minus (BM) Singalbit = 0 Spannung ca. 3,5 V

Bus-Minus (BM) Singalbit = 1 Spannung ca. 1,5 V

Bus-Plus (BP) Singalbit = 0 Spannung ca. 1,5 V

home

statisches segment
frame
frame header
header steuerbits
header frame id
header payload length
header crc
header cycle count
payload
trailer crc
dynamisches segment
symbol window
nit
